Fulride
Roller type linear motion products using a miniature thrust angular contact ball bearings Croxy developed by ISC.
Smooth linear motion and high load capacity are realized by smooth rotation of Croxy of miniature Thrust Angular Contact Ball Bearing. It is low cost linear motion products and excellent in low noise. Available to a belt type actuator.
- ■Roller type linear motion products
- ■Available to a belt type actuator.
- ■Low noise · High load capacity
Running Accuracy Stroke: 160 mm
Product video
Load and displacement
Video of FULRiDE usage example
Belt type actuatorMini NC processing machine
Standard size
| Part Number | Rail length | Hole pitch P | Number of holes | Stroke | |||
|---|---|---|---|---|---|---|---|
| 1 | 2 | 3 | 4 | ||||
| 40SW215SA | 215 | 50 | 0 | 0 | 0 | 6 | 55 |
| 40SW265SA | 265 | 100 | 0 | 0 | 0 | 6 | 105 |
| 40SW315SA | 315 | 150 | 0 | 0 | 0 | 8 | 155 |
| 40SW365SA | 365 | 100 | 100 | 0 | 0 | 8 | 205 |
| 40SW415SA | 415 | 150 | 100 | 0 | 0 | 8 | 255 |
| 40SW465SA | 465 | 100 | 200 | 0 | 0 | 8 | 305 |
| 40SW515SA | 515 | 150 | 200 | 0 | 0 | 8 | 355 |
| 40SW565SA | 565 | 200 | 200 | 0 | 0 | 8 | 405 |
| 40SW615SA | 615 | 250 | 200 | 0 | 0 | 10 | 455 |
| 40SW665SA | 665 | 100 | 200 | 200 | 0 | 10 | 505 |
| 40SW715SA | 715 | 150 | 200 | 200 | 0 | 10 | 555 |
| 40SW765SA | 765 | 200 | 200 | 200 | 0 | 10 | 605 |
| 40SW815SA | 815 | 250 | 200 | 200 | 0 | 10 | 655 |
| 40SW865SA | 865 | 100 | 200 | 200 | 200 | 12 | 705 |
| 40SW915SA | 915 | 150 | 200 | 200 | 200 | 12 | 755 |
| 40SW965SA | 965 | 200 | 200 | 200 | 200 | 12 | 805 |
* Please contact us for those exceeding the length 965.
CAD data download
| Part number | 2D CAD | 3D CAD | |
|---|---|---|---|
| 40SW215SA |  |
 |
 |
| 40SW265SA | |
|
|
| 40SW315SA | |
|
|
| 40SW365SA | |
|
|
| 40SW415SA | |
|
|
| 40SW465SA | |
|
|
| 40SW515SA | |
|
|
| 40SW565SA | |
|
|
| 40SW615SA | |
|
|
| 40SW665SA | |
|
|
| 40SW715SA | |
|
|
| 40SW765SA | |
|
|
| 40SW815SA | |
|
|
| 40SW865SA | |
|
|
| 40SW915SA | |
|
|
| 40SW965SA | |
|
|
| 40SWOP02 | |
|
|
Load direction
| Co | MRO | MPO | MYO | |
|---|---|---|---|---|
| Static load capacity | 550(N) | 6.0(N・m) | 7.9(N・m) | 5.0(N・m) |

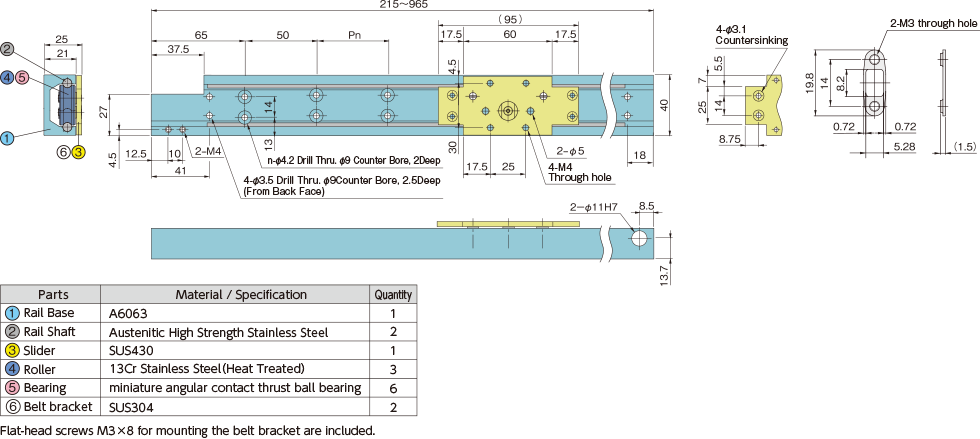

Specification and size
Running test
Condition: normal temperature, average speed 0.2 m/s, load 200 N, stroke 0.3 m
Examples of electric actuators
35 motor is suitable
